BASOE^®

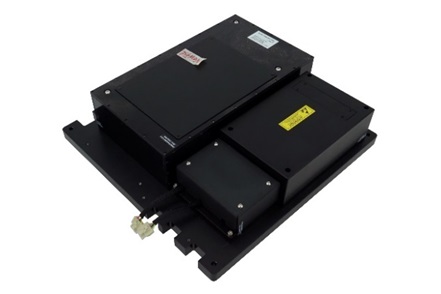

Biomedical Application Specific Optical Engines (BASOE)

BASOE^® is an optical platform with single or multi-laser that focus into the flow cell at customer specified beam overlap and spacing. The multi-laser optical platform is built with an integrate module with 523nm, 638nm and 405nm lasers (or other lasers with customized wavelengths) inside, laser beam shaping optics, and beam combining optics, and is delivering the final focused beam to the flow cell meeting customer specification.

---

Features:

• Up to 3-laser, 10-ch. detectors
• Custom wavelengths
• Custom focus beam
• Highly integrated
• Co-linear or separated beams
• User-adjustable
• Fast time-to-market
• Cost-saving

Overview:

The optical platform is designed with the customer-adjustable beam positioning and focusing. Based on customer specifications, this optical platform incorporates the custom-specific flow cell, filters, and solid-state detectors, and it’s to be assembled and tested to the customer requirements.

Configurable for different requirements:

1 laser, 2-ch;

2-laser, 4-ch or 6-ch;

3-laser 8-ch or 10-ch;

or other customized configurations.
